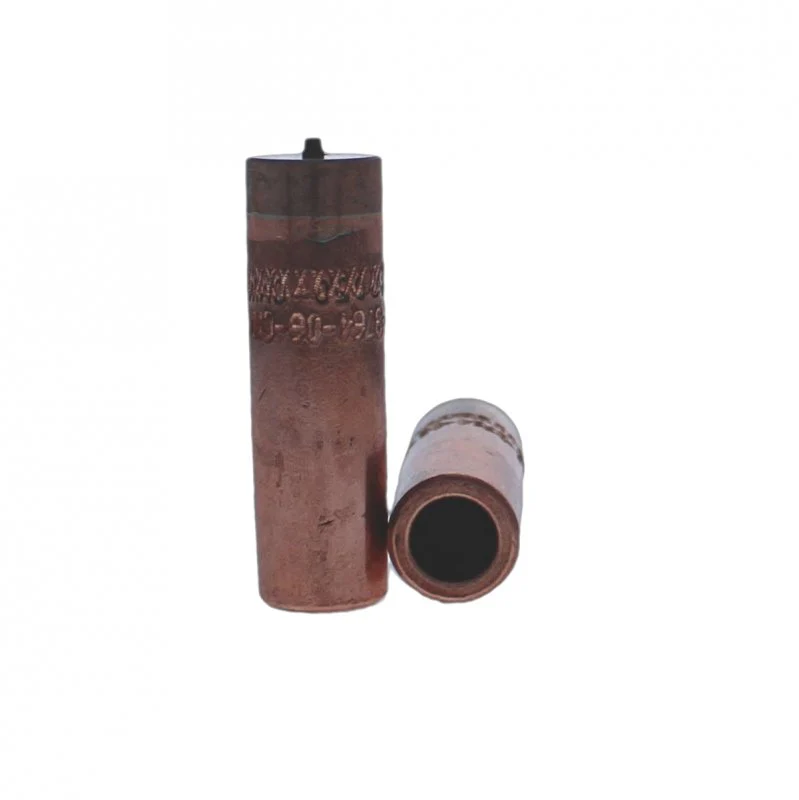

16-3764-06 SELF-PILOTING NUT ELECTRODE

RWMA Class: 2

Refractory Material: 11 (10W)

Refractory Thickness: 0.25

Holder Engagement: 5RW

Overall Length: 2.00

Weld Face Diamter: 0.63

Pin Diameter: 0.100

Pin Stickout: 0.093

Nut Size: #6
